WEEK 7 computer-controlled machining

  • Graphing
  • Mill board
  • Assamble

Graphing
1.in this week, i want to make a table bookshelf to release my limit room on table. save the space from plane to veritcal space
2.sketch the bookshelf.
First, i take measure of the book, and descide the dimension of bookshelf side and layer.
Second,the board size we use is 74 cm * 45 cm, thinkness of board is 1.72cm. so i arrange bookshelf side and layer fit on board milling.
Third, i set the margin of error of board at 0.2cm-0.03cm

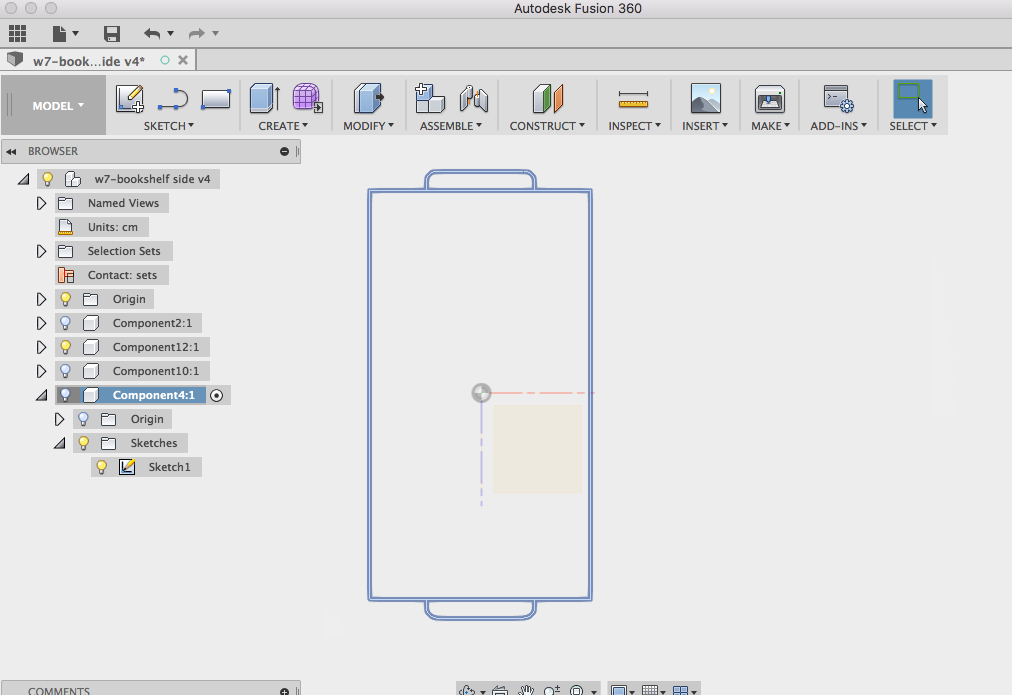

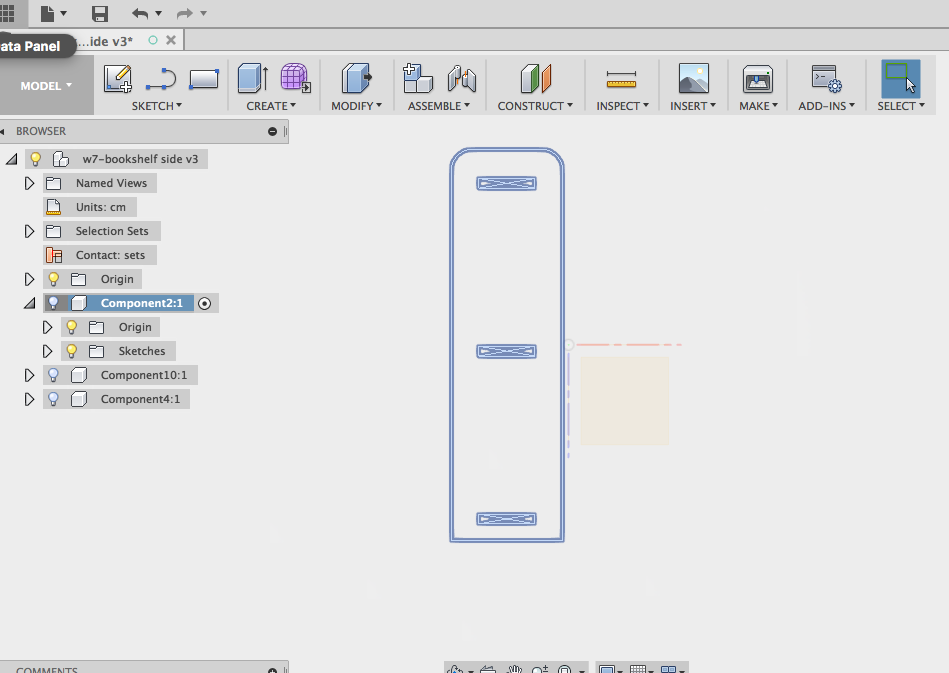

Drawing in fusion 360

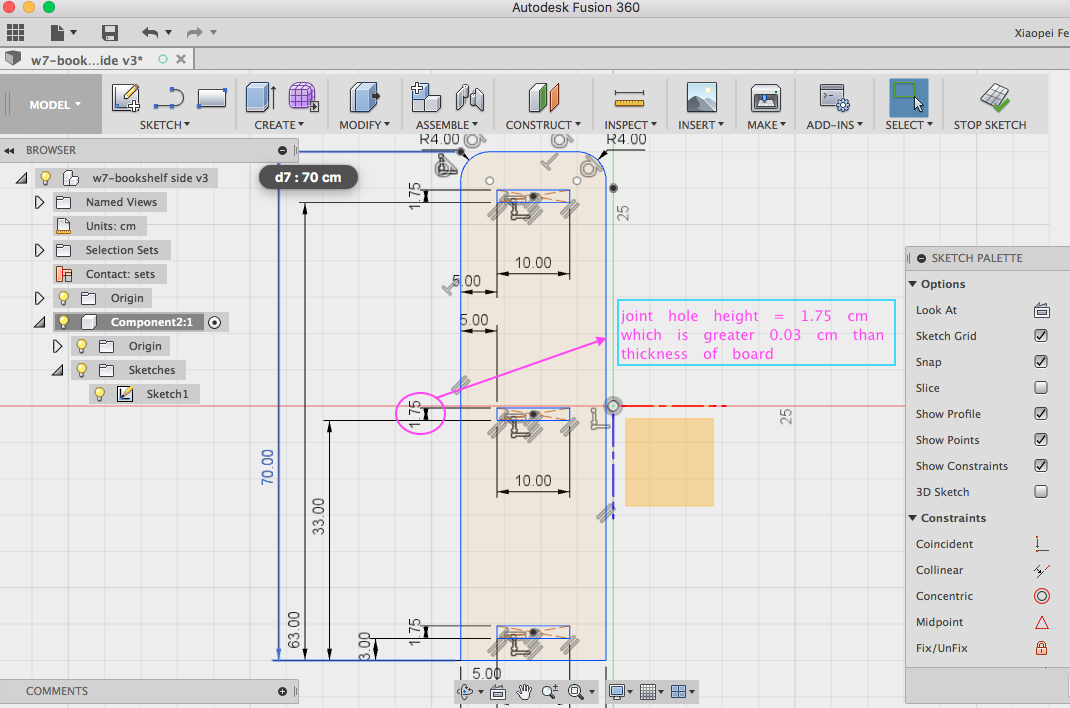

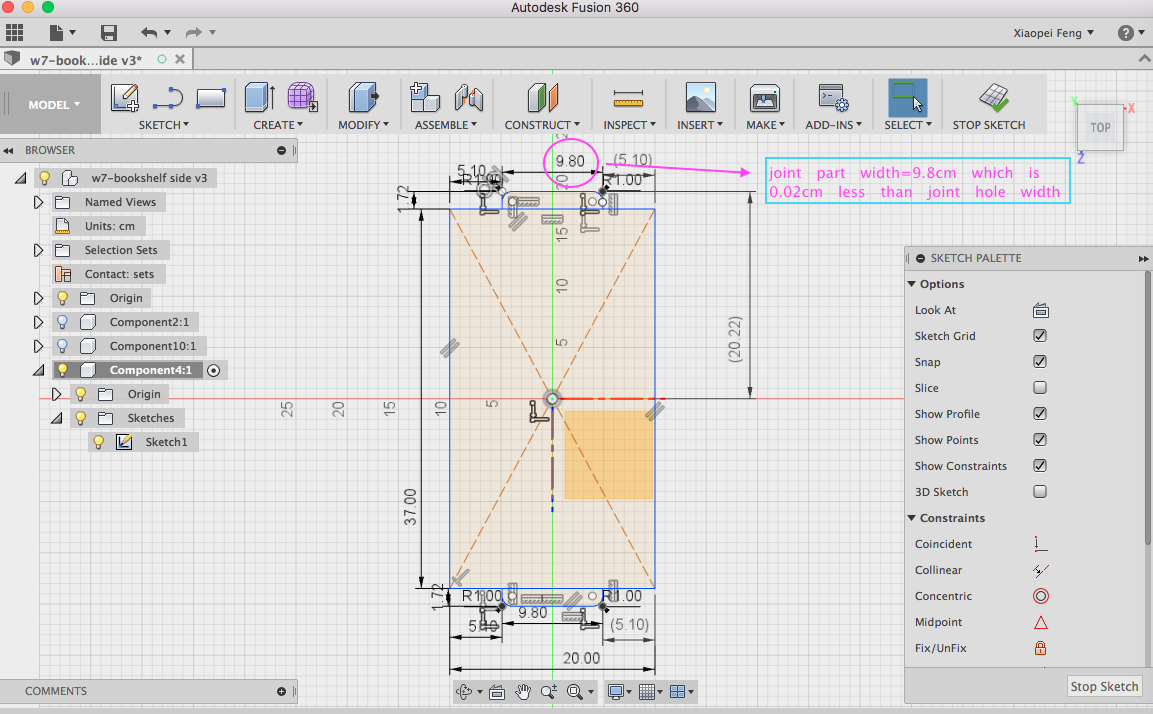

make chamfer for joint part and set the joint hole height as 1.75cm, and also set the joint part on layer as 9.8cm .




Mill Board

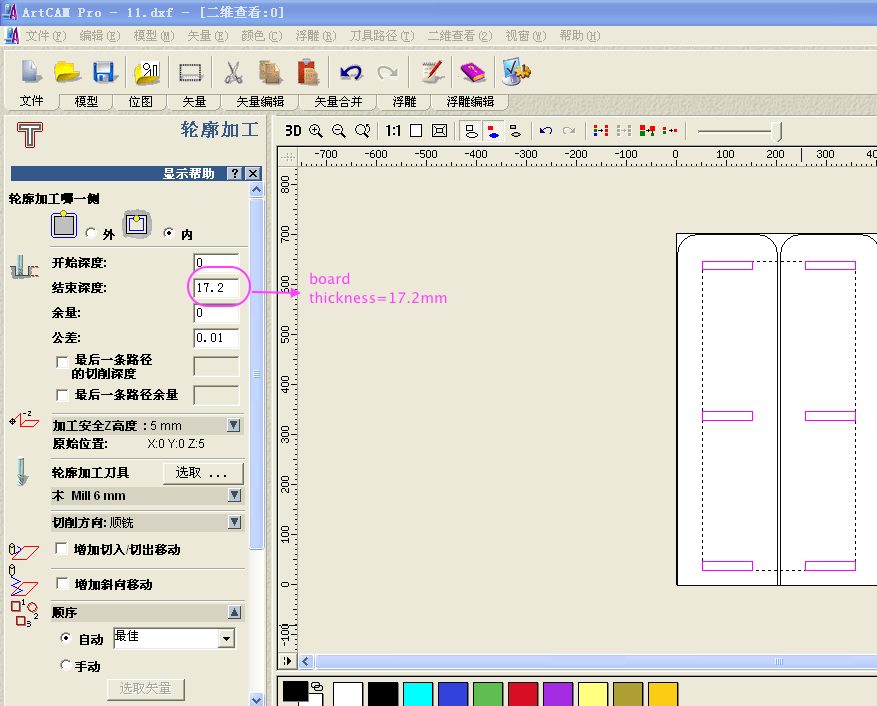

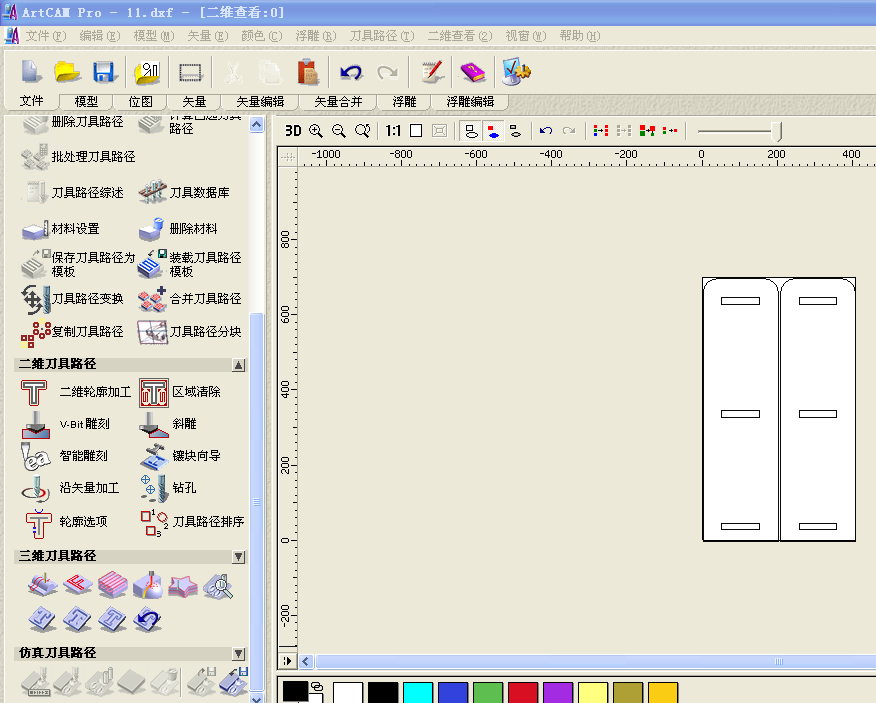

1.export file to dxf. file type

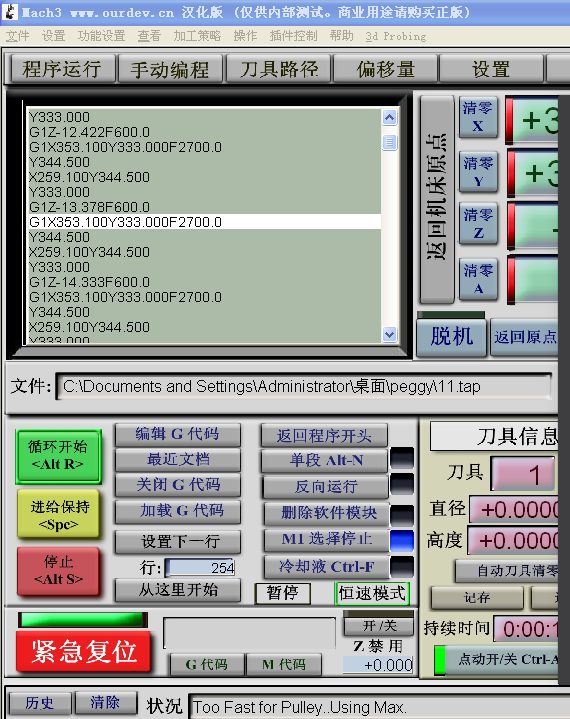

2.CNC setting

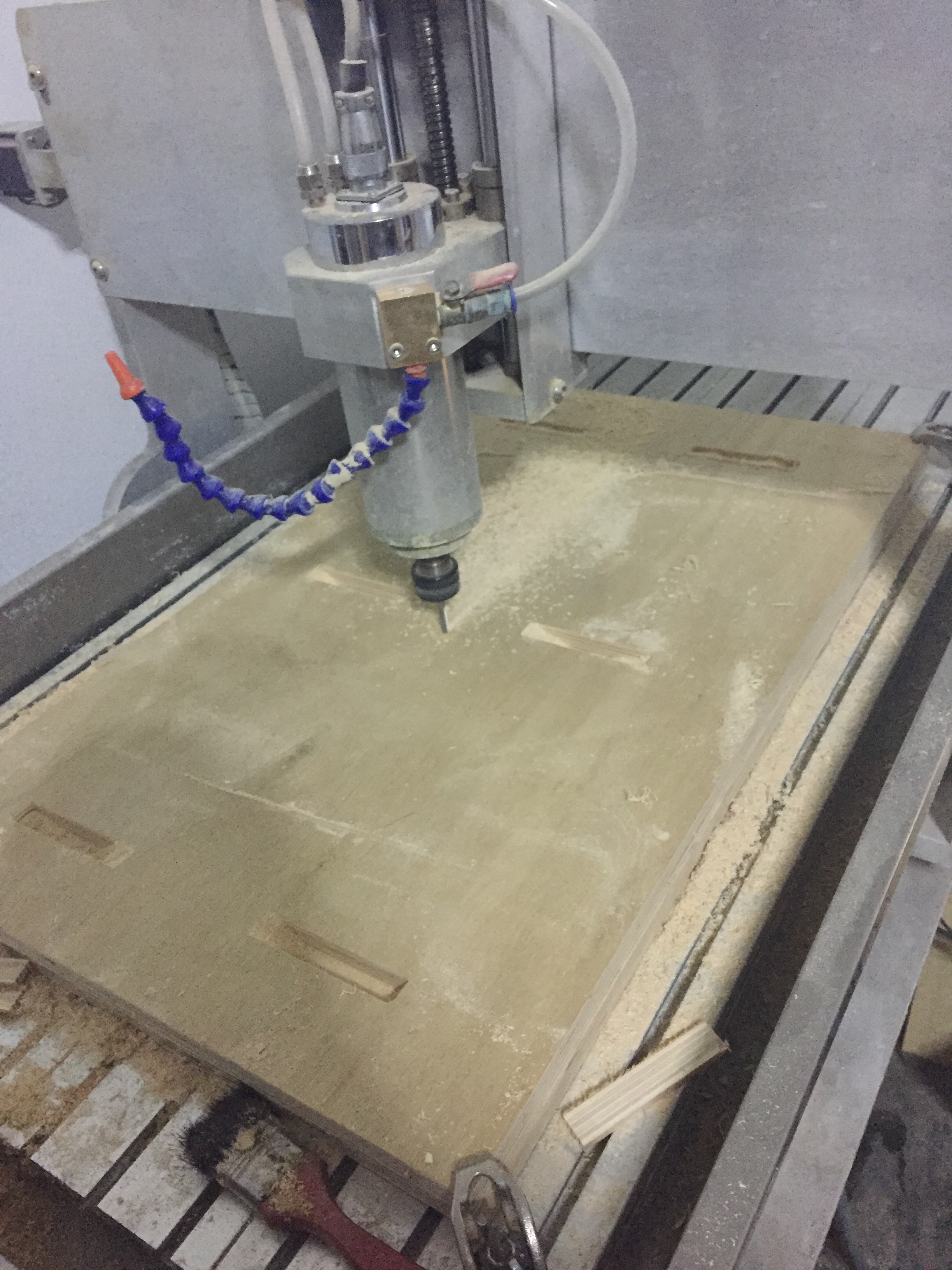

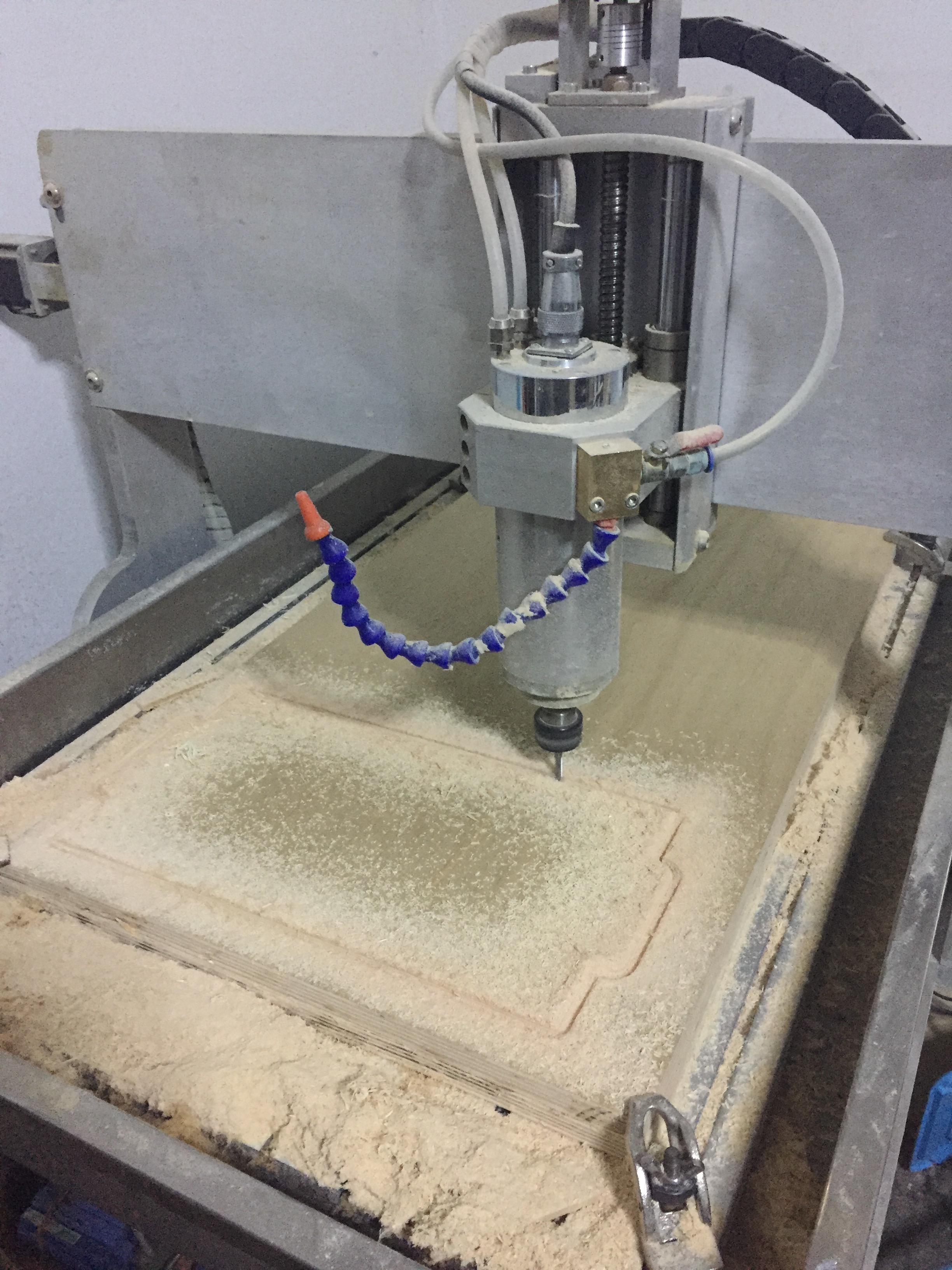

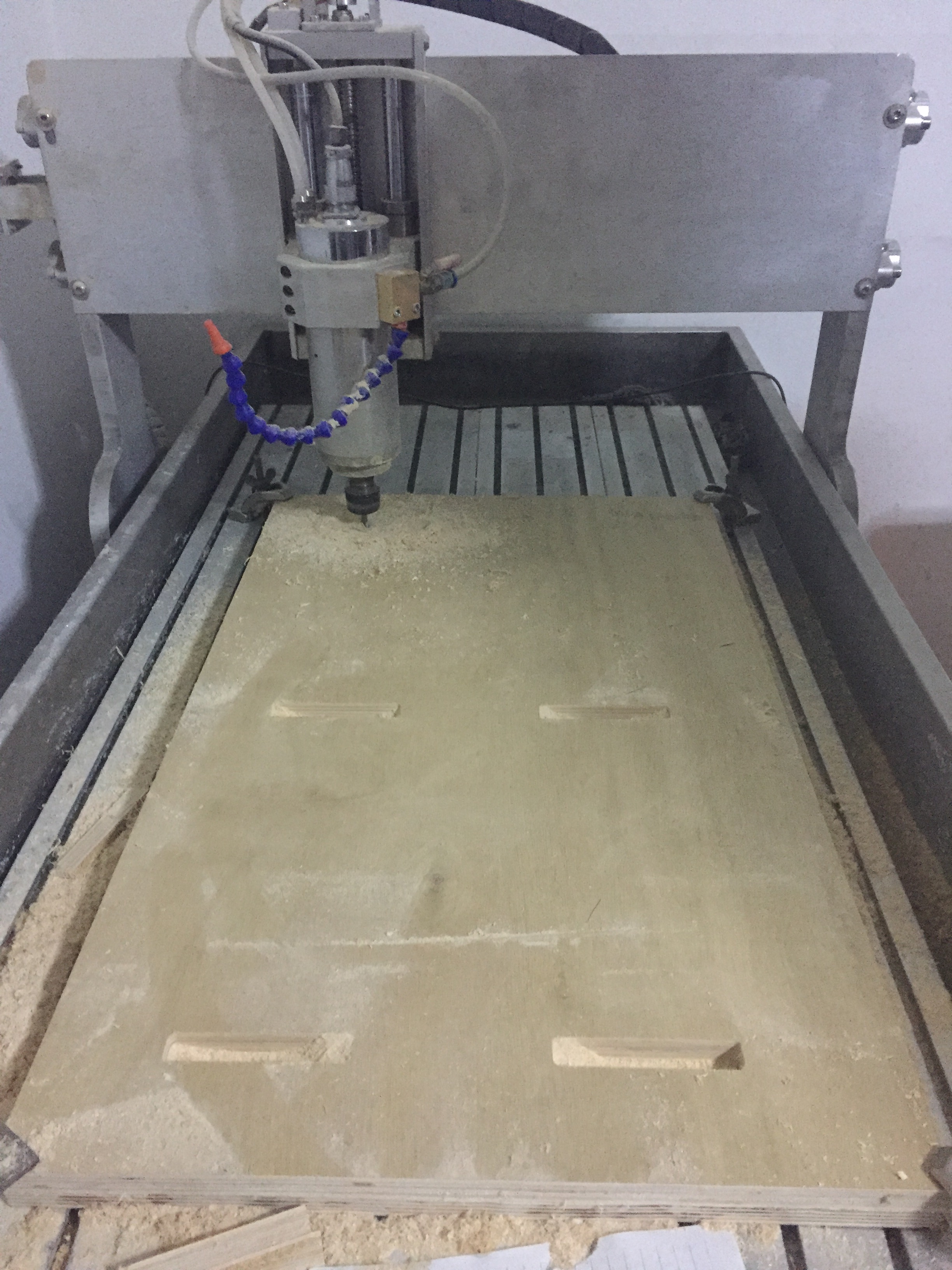

3.start milling

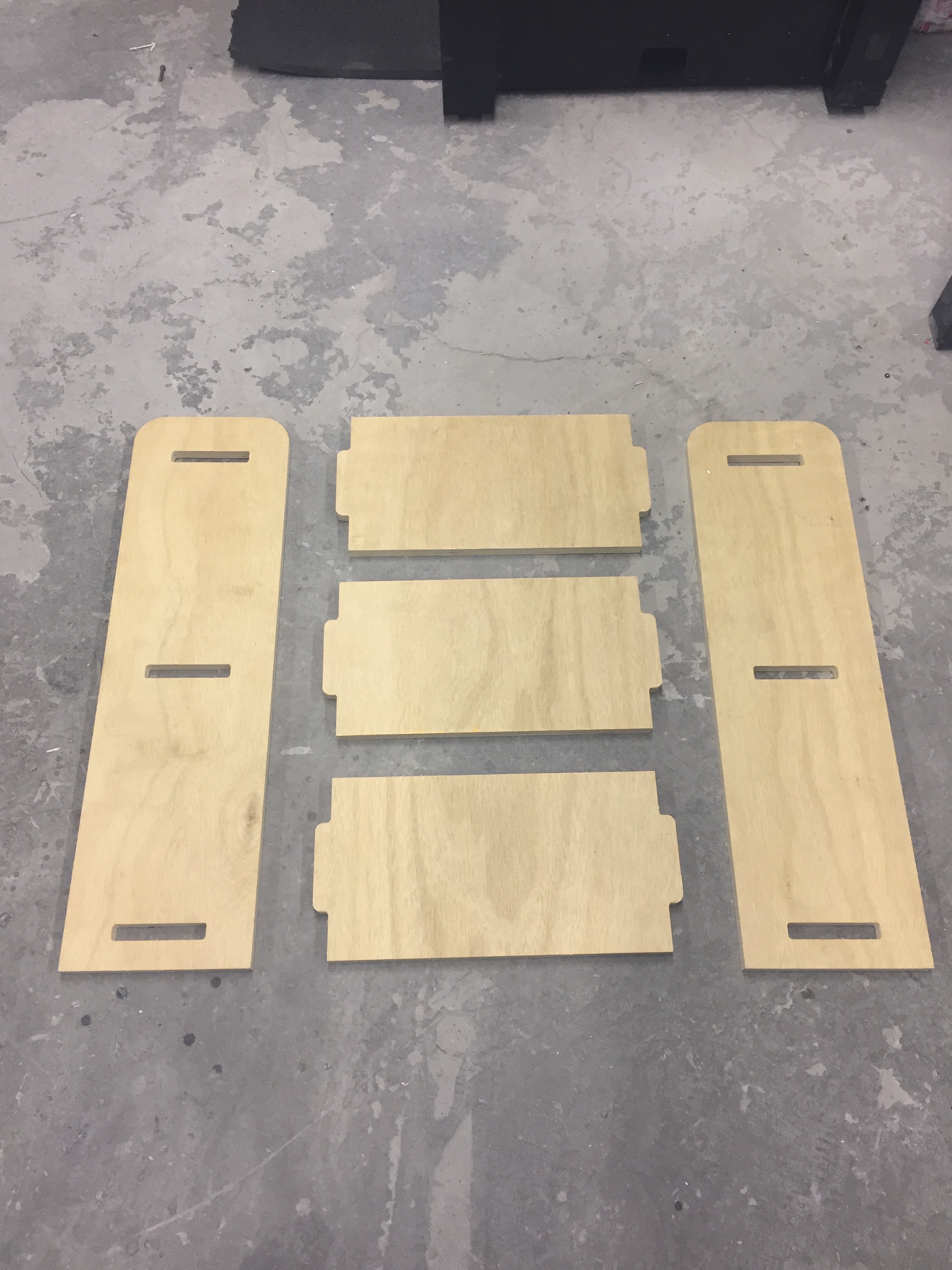

Assemble

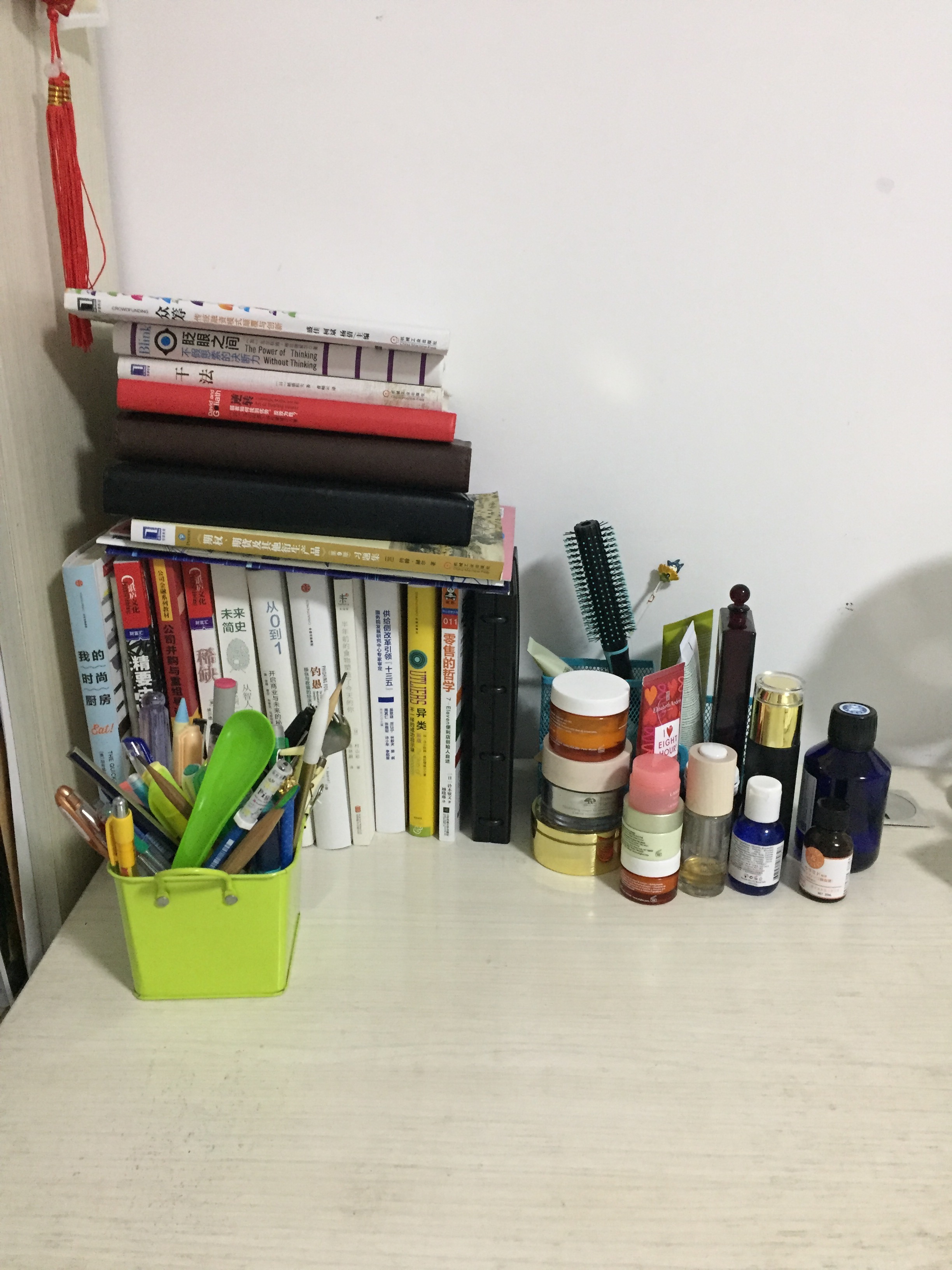

before looking

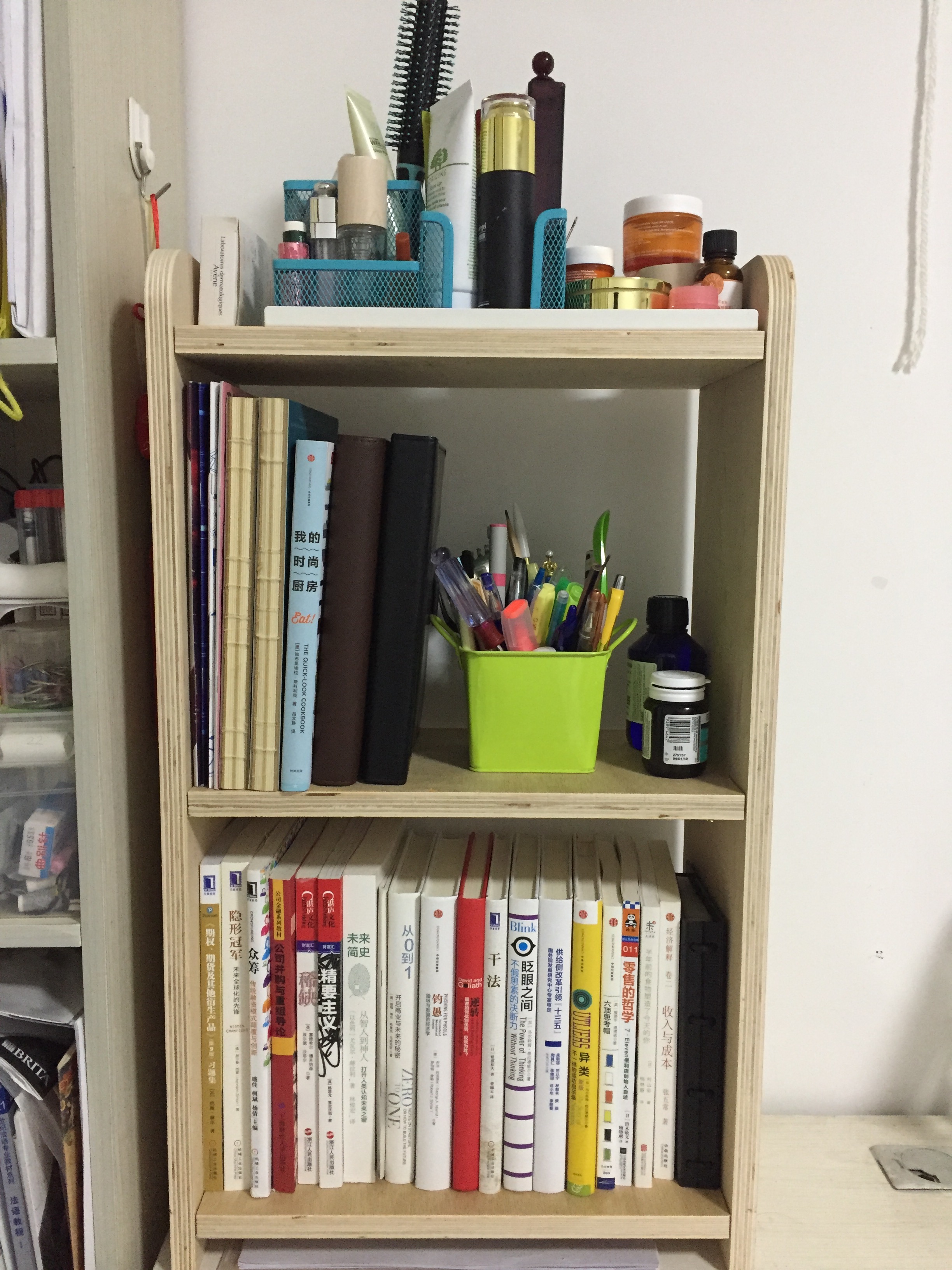

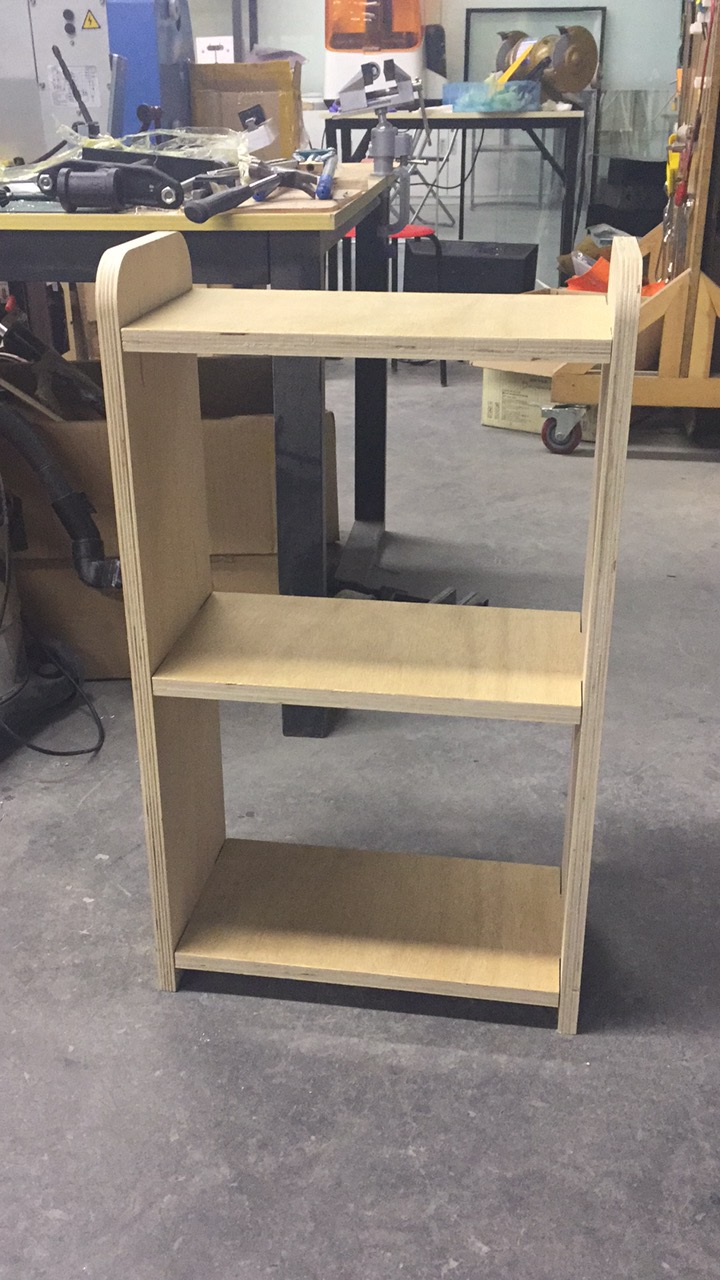

after looking, very tidy now , i am so happy for this week output.

download files
book shelf side
book shelf layer
